Huvle API Document1. Noti-bar Setup1-1. Noti-bar On/Off1-2. Noti-bar Lock Screen Setup1-3. Custom Noti-bar1-3-1. Icon Modification1-3-2. Text Modification1-3-2. Layout Setup1-3-4. Event Setup2. Huvle Browser2-1. Browser Integration API3. Approval Window Modification3-1. Image Modification3-2. Layout Structure Modification 3-3. Approval Window Output Setup

Huvle API Document

1. Noti-bar Setup

1-1. Noti-bar On/Off

Huvle SDK provides API to enable the partner app to develop Huvle Noti-bar On/Off function from its setup menu

Noti-bar On API


public static void notiUpdate(Context context)

Noti-bar Off API


public static void notiCancel(Context context)

Noti-bar Status API


public static boolean isNotiBarState(Context context)

true : Noti-bar On (Default)

false : Noti-bar Off

If you need to provide Huvle Noti-bar On/Off function via your setup menu, Please checke Huvle Noti-bar status info and then implement On/Off toggle as below

Example Code


x
...

boolean currentStatus = Sap_Func.isNotiBarState(this);
if(currentStatus) {
    Sap_Func.notiCancel(this);
} else {
    Sap_Func.notiUpdate(this);
}
...

1-2. Noti-bar Lock Screen Setup

Below API info manage the status info which can set whether Huvle SDK's Noti-bar is exposed or not on the lock screen

Lock Screen Setup API


public static void setNotiBarLockScreen(Context context, boolean state)

Lock Screen Status Information API


public static boolean isNotiBarLockScreen(Context context)

true : Lock Screen Exposure (Default)

false : Lock Screen Non-exposure

You can set the lock screen status info as false as below only when you want that Huvle Noti-bar won't be outputted on the lock screen

Example Code


...
@Override
public void onResume() {
    super.onResume();
    if(checkPermission()) {
        //-- Check the Lock Screen Setup
        Sap_Func.setNotiBarLockScreen(this, false);
        //-- Huvle Integration API
        Sap_act_main_launcher.initsapStart(this, "bynetwork", true, true);
    }
}
...

To implement setNotiBarLockScreen( ) method correctly, you must call setNotiBarLockScreen( ) method before calling Huvle SDK Integration API

Some devices' above setup info might not work well because of difference between each cell phone manufacturer

1-3. Custom Noti-bar

Huvle SDK provides Custom Noti-bar function to create optimized Noti-bar for partner app. Basic shape of Noti-bar is as below. If you want to customize Huvle Noti-bar by yourselves, you can modify 'Icon', 'Text', 'Event info'

1-3-1. Icon Modification

Huvle Noti-bar Icon Path of Huvle SDK is as below

Detail Path : ../Stealthaddplatformbrowser_lib/src/main/res/drawable-xxhdpi

Make the Icon images that you want to use and then overwrite them as notibar_icon_1 ~ notibar_icon_5

The sixth erea of Noti-bar is the unique erea of Huvle SDK. DO NOT CHANGE notibar_icon_6 image

Example

For example, if you make new notibar_icon_1 image and then overwrite it, Noti-bar icon can be changed

Ex ) Overwrite

EX ) Result Screen

1-3-2. Text Modification

You can modify string.xml file to change the text at the bottom of Noti-bar

Huvle Library supports ENGLISH, KOREAN, CHINESE, VIETNAMESE, JAPANESE. You can modify string.xml file from values of res folder in Huvle Library

Default Language is ENGLISH

The item property info regarding Huvle Noti-bar are noti_icon_1 ~ noti_icon_5 as below

If you modify each item's text, the text of Huvle Noti-bar will be changed


...
<!-- Custom NotiBar -->
<string name="noti_icon_1">Call</string>
<string name="noti_icon_2">Camera</string>
<string name="noti_icon_3">Calculator</string>
<string name="noti_icon_4">Calendar</string>
<string name="noti_icon_5">Alarm</string>
...

Example

For example, if you want to change the first item's text of Huvle Noti-bar, you can modify as below

EX ) string.xml text modification


...
<!-- change the text from Call into Huvle App -->
<string name="noti_icon_1">Huvle App</string>
<string name="noti_icon_2">Camera</string>
<string name="noti_icon_3">Calculator</string>
<string name="noti_icon_4">Calendar</string>
<string name="noti_icon_5">Alarm</string>
...

EX ) Result Screen

If you changed the text of Huvle Noti-bar, please modify all language files - ENGLISH, KOREAN, CHINESE, VIETNAMESE, JAPANESE - supported by Huvle SDK to prevent error

When you changed the text, you must modify all stirng.xml files of all languages(English, Korean, Chinese, Vietnamese, Japanese)

1-3-2. Layout Setup

If you need to modify a gap or a background image of Huvle Noti-bar. you can modify lay_sap_act_noti.xml file so that can get Huvle Noti-bar arrangement which you want

Detail Path : ../Stealthaddplatformbrowser_lib/src/main/res/layout/lay_sap_act_noti.xml

DO NOT CHANGE the id info. The id processes the event by being referred from class file

1-3-4. Event Setup

Sap_act_middle.class file processes the event of Huvle Noti-bar

When you select each button of Noti-bar, Sap_act_middle.class will be implemented and NT_001 ~ NT_005 will be delivered to distinguish each button

If you Click the button of Huvle Noti-bar, startPackage( ) method defined by Sap_act_middle.class will be called. You can change the Action info as you want to execute by modifying switch inquiry method info

startPackage( )

case NT_001 : Code location when you select the first icon of Noti-Bar

case NT_002 : Code location when you select the second icon of Noti-Bar

case NT_003 : Code location when you select the third icon of Noti-Bar

case NT_004 : Code location when you select the fourth icon of Noti-Bar

case NT_005 : Code location when you select the fifth icon of Noti-Bar


/**
    * Setting Custom Notification Bar
    * @param intent
    */

  private void startPackage(Intent intent) {
    try {
        if(intent!=null) {
            String NT_NUMBER = intent.getStringExtra(EXTRA_START_NUMBER);
            if(NT_NUMBER!=null && NT_NUMBER.isEmpty()==false) {
                switch (NT_NUMBER) {
                    //-- Custom
                    case NT_001:
                        startCustom(getPackageName(), "com.byappsoft.sap.browser.Sap_MainActivity");
                        break;
                    //-- Camera
                    case NT_002:
                        startCamera(this, NT_002);
                        break;
                    //-- Calendar
                    case NT_003:
                        startCalendar(this, NT_003);
                        break;
                    //-- Alarm
                    case NT_004:
                        startAlarm(this, NT_004);
                        break;
                    //-- Settings
                    case NT_005:
                        startSetting(this, NT_005);
                        break;
                    default:
                        clearMiddle(this);
                        break;
                }
            } else {
                clearMiddle(this);
            }
        } else {
            clearMiddle(this);
        }
    }catch (Exception e){
        clearMiddle(this);
    }
  }
  ...

Please redefine the action as you want to execute when you click the icon(button) of Huvle Noti-bar

Note: The sixth icon is unique erea for Huvle browser execution. You can't modify it

2. Huvle Browser

2-1. Browser Integration API

Sap_MainActivity.class file is Main Activity Info for Huvle browser execution

If you want to execute Huvle browser from your app, you can do it by creating Intent info to execute Sap_MainActivity.class

Example Code


x
...

Intent intent = new Intent(MainActivity.this, Sap_MainActivity.class);
intent.putExtra("search_keyword", "https://www.google.com/");
intent.addFlags(Intent.FLAG_ACTIVITY_SINGLE_TOP);
startActivity(intent);
...

If you want to load certain URL by Huvle browser execution, Please include the search_keyword info in intent info and then deliver

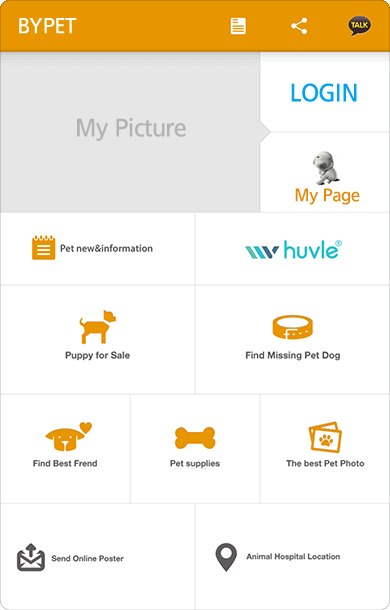

Like below 'By Pet App', if you make browser shortcut inside your app, it will get a more favorable position to expose ads

When you use the shortcut, you will make your UI by yourselves

3. Approval Window Modification

3-1. Image Modification

Because Huvle SDK supports ENGLISH, KOREAN, CHINESE, VIETNAMESE, JAPANESE, there are five approval window image files. Detail path of approval window is as below

Detail Path

../Stealthaddplatformbrowser_lib/src/main/res/drawable-xxhdpi

File Name

English file name : res_sap_notiba_img_en.png

Korean file name : res_sap_notiba_img_ko.png

Chinese file name : res_sap_notiba_img_cn.png

Vietnamese file name : res_sap_notiba_img_vi.png

Japanese file name : res_sap_notiba_img_ja.png

After made each language's window image icon, overwrite them as below

3-2. Layout Structure Modification

lay_sap_act_pop.xml file is xml file which is used for Huvle approval window dialog

If you wand to change the layout structure of approval window, you can modify lay_sap_act_pop.xml file

Detail Path : ../Stealthaddplatformbrowser_lib/src/main/res/layout/llay_sap_act_pop.xml

3-3. Approval Window Output Setup

Because the Sap_act_main_laucher.class called for integration is provided as the open source format, you can modify the source as you want on your end

Initial Approval Window Output API


public static void isNotibarPopState(Context context)

Sap_Fun.isNotibarPopState( ) method can check whether initial approval window is outputted for initial user. Only when the window couldn't be outputted, it can create dialog to output the approval window

If you want to execute Huvle API from your app directly and without approval window, you can comment the codes regarding dialog creation and then directly call the initSapstartapp method of Sap_act_main.class as below example code

Example Code


...

Sap_act_main.initSapStartapp(context, sAgkey, Sap_Func.isNotiBarState(context), URLSEARCH);
...

You must call Sap_act_main.initSapStartapp( ) method
